SDWire
89,00 € (ex. VAT)
Overview
SDWire allows to flash SD card connected to the DUT (Device Under Test), without physical contact with the device. It serves as a SD card reader and SD card mux in one device. The PCB board is designed in such a way that it fits into micro SD card slots. Thanks to this, there is no need for special cables with a micro SD adapter, like in the muxPi product.
Documentation:

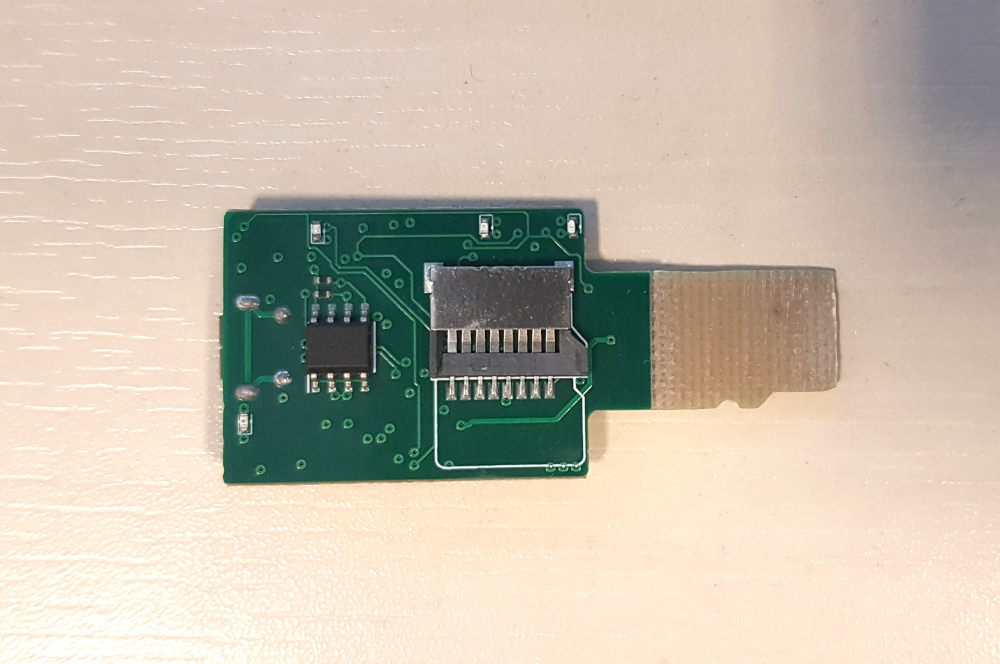

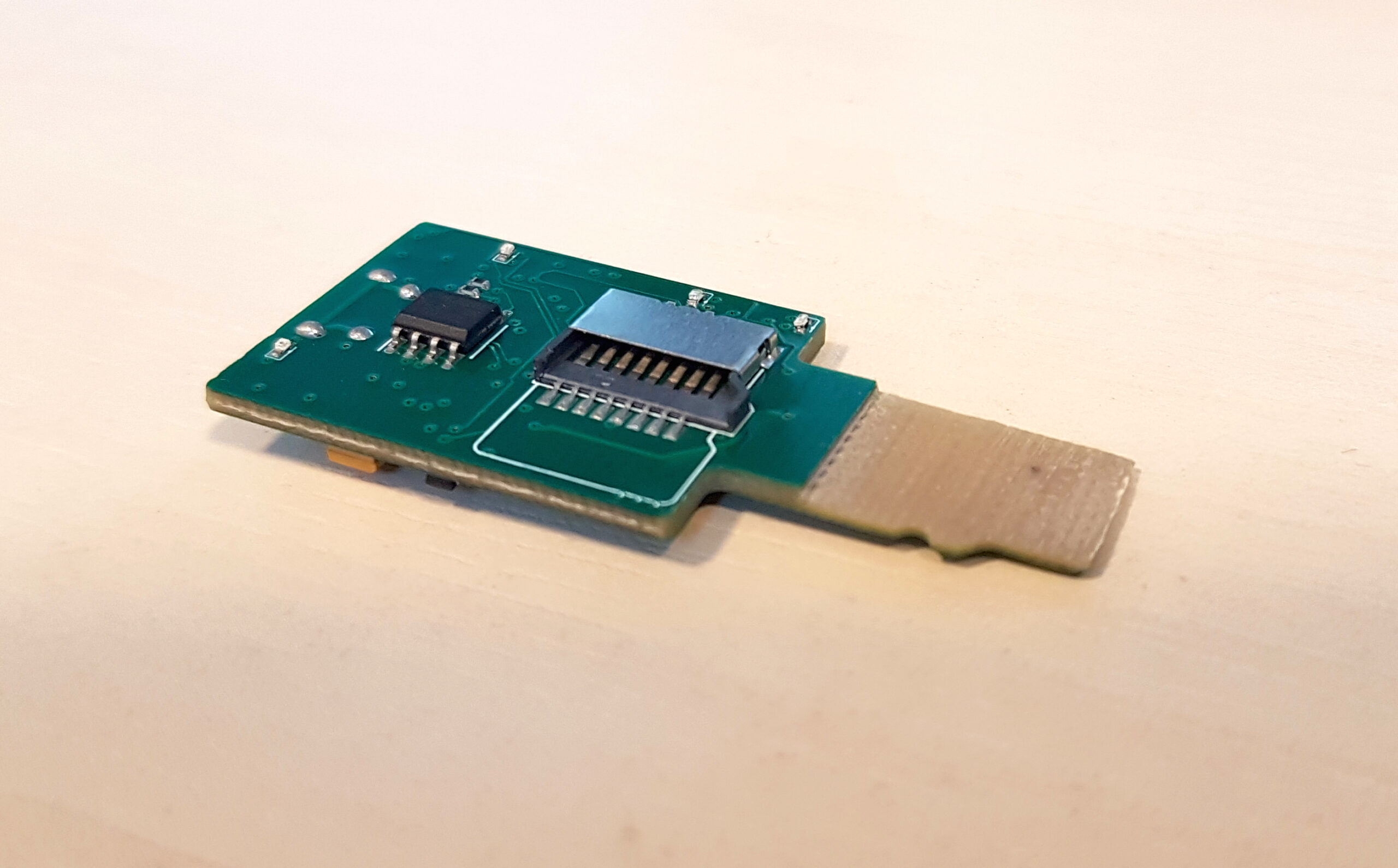

Please note that this batch of SDWire was manufactured on 1.6mm thick PCB boards, and then the tip was trimmed down to a thickness of 0.8mm to fit the SD slot (please see pictures). This has no impact on the product’s functionality.
The new batch of SDWire is currently in production. The orders will be fulfilled by the end of September / the beginning of October.
Available on backorder
Additional information
| Weight | 0,1 kg |
|---|
Description
SDWire is a small board with two features:
- SD card reader
- SD card MUX
SDWire allows to flash SD card connected to the DUT (Device Under Test), without physical contact with the device. There is only one micro USB socket for connecting to host PC. Both USB mass storage and MUX control are served through the same USB connection.
The PCB board is designed in such a way that it fits into micro SD card slots. Thanks to this, there is no need for special cables with a micro SD adapter, like in the muxPi product.
SD-MUX has dedicated software which is a simple tool meant to control the hardware. Source code of the tool is published on tizen git server. This is simple to use, command-line utility software written in C and based on open-source libFTDI library.
