Protectli Vault FW6A

350,34 € – 518,95 € (ex. VAT)

Overview

The Vault is an open-source firmware ready firewall manufactured by Protectli, focused on network appliance and firewalls. One of the main advantages of this platform is fanless design allowing for silent work and overall small dimensions. With an Open Source solution, you can choose which Operating System will run your network, with full control over the configuration!

Documentation:
Datasheet: link
Knowledge Base: link

x
SKU: N/A Category:

Additional information

Weight 1,1 kg
Order Processing Time

The preparation of the equipment for shipment can take up to 6 working days.
Delivery time

Poland – up to 2 working days, European Union – up to 6 working days, Worldwide – Express up to 8 working days, Economic up to 30 working days

Description

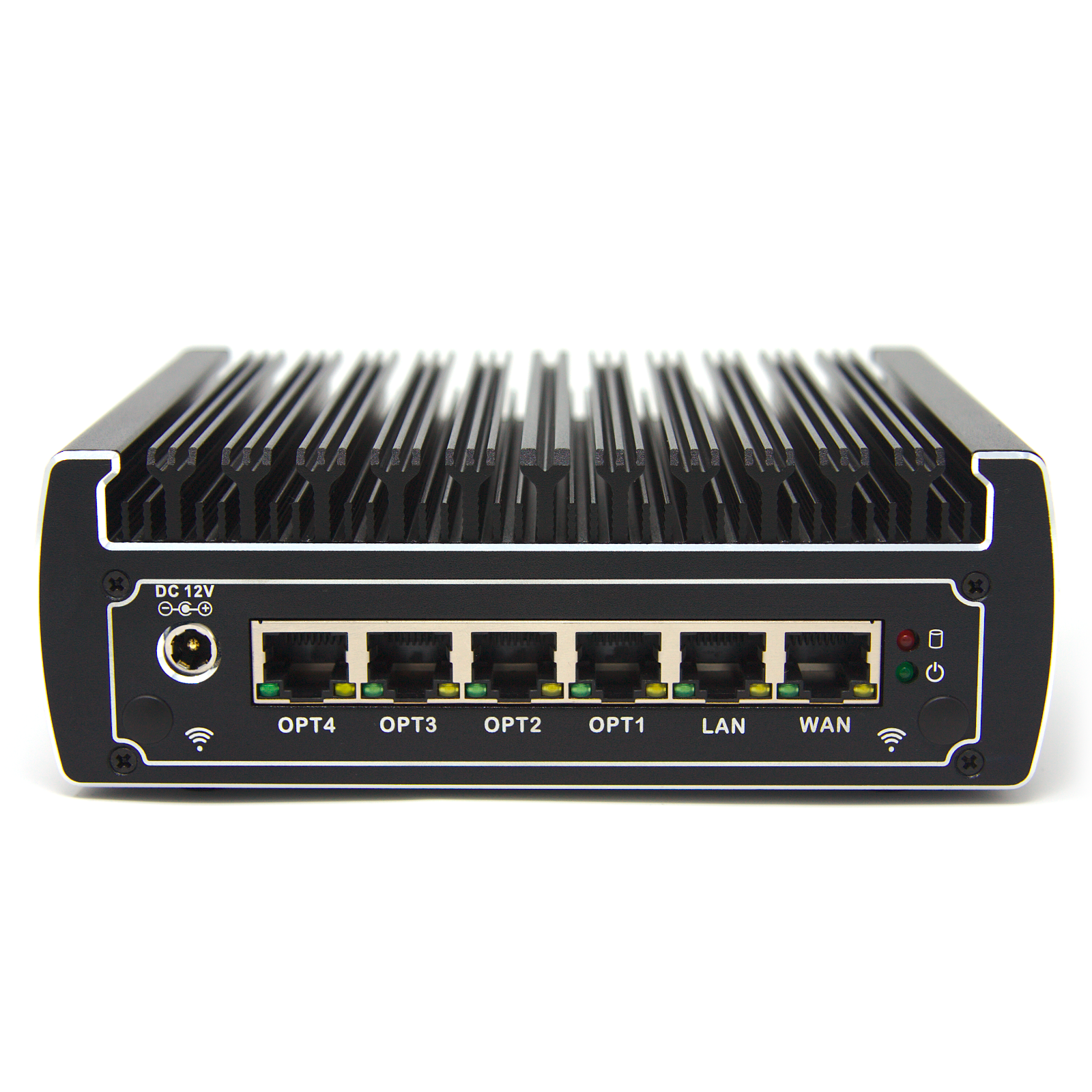

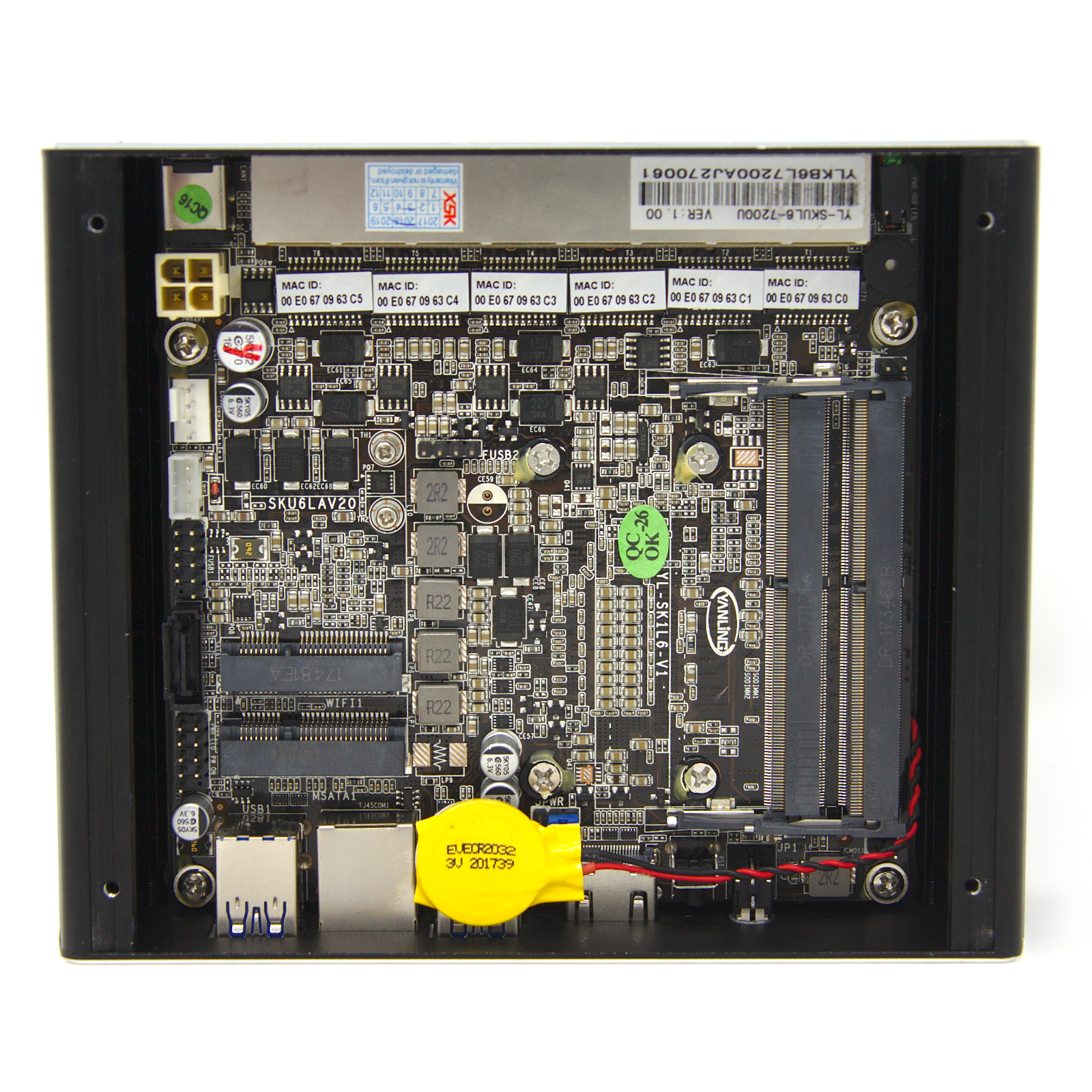

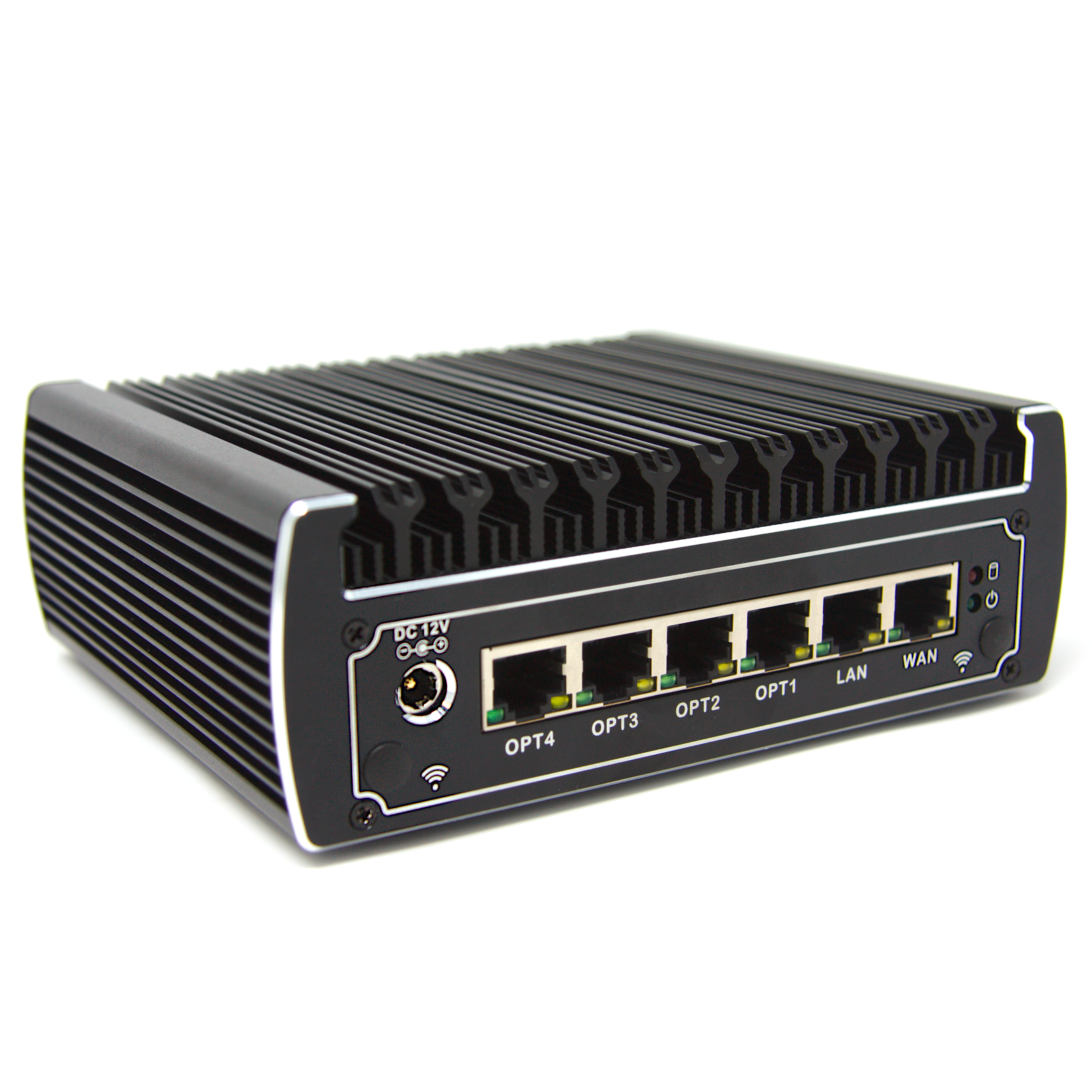

The Vault is a small form factor PC built for use as a firewall / router. The FW6 is based on a 6 network port design that leverages a low power, but versatile Intel Celeron 3865U CPU. This CPU supports AES-NI, Intel’s Hardware Acceleration for Encryption. The Vault uses standard Intel components (including Intel network ports) which results in compatibility with a variety of operating systems, including a number of open source firewall projects. The Vault has no moving parts, which increases it's durability in less than ideal environments. Its whole aluminum enclosure is a giant heat sink, keeping the CPU cool with fanless design!



Kit includes

  • Vault platform
  • Optional RAM / Storage / WiFi
  • BIOS: UEFI stock | Dasharo
  • OS (with storage only): Debian 11 | Ubuntu 20.04 | FreeBSD 13 | OPNSense 19.01 | pfSense 2.4
  • Universal Power Supply, VESA mount kit, Serial (RS232) to network (RJ45) adapter cable, Quick Start Guide

Specifications

Specification FW6A
Processor Intel Celeron Dual Core 3865U
RAM 8GB DDR4 / 16GB DDR4
Network 6x Intel 82583V Gigabit Ethernet NIC ports
Graphics Integrated Intel HD Graphics 610
Storage 128GB mSATA / 256GB mSATA
I/O ports 4x USB 3.0, 1x RJ-45 COM, 1x HDMI
Instruction set AES-NI support

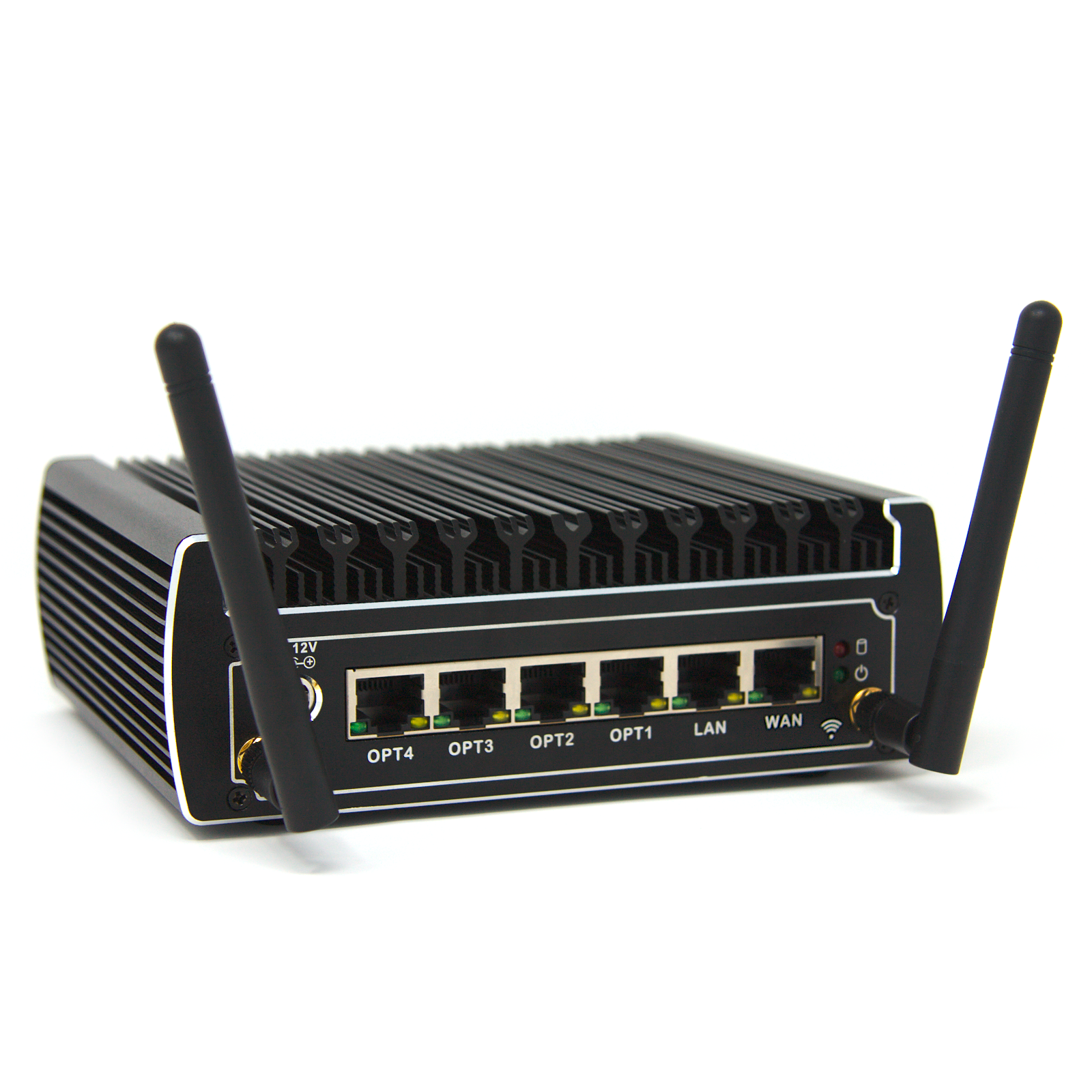

WiFi 802.11 b/g/n/ 2.4GHz Module (installed)

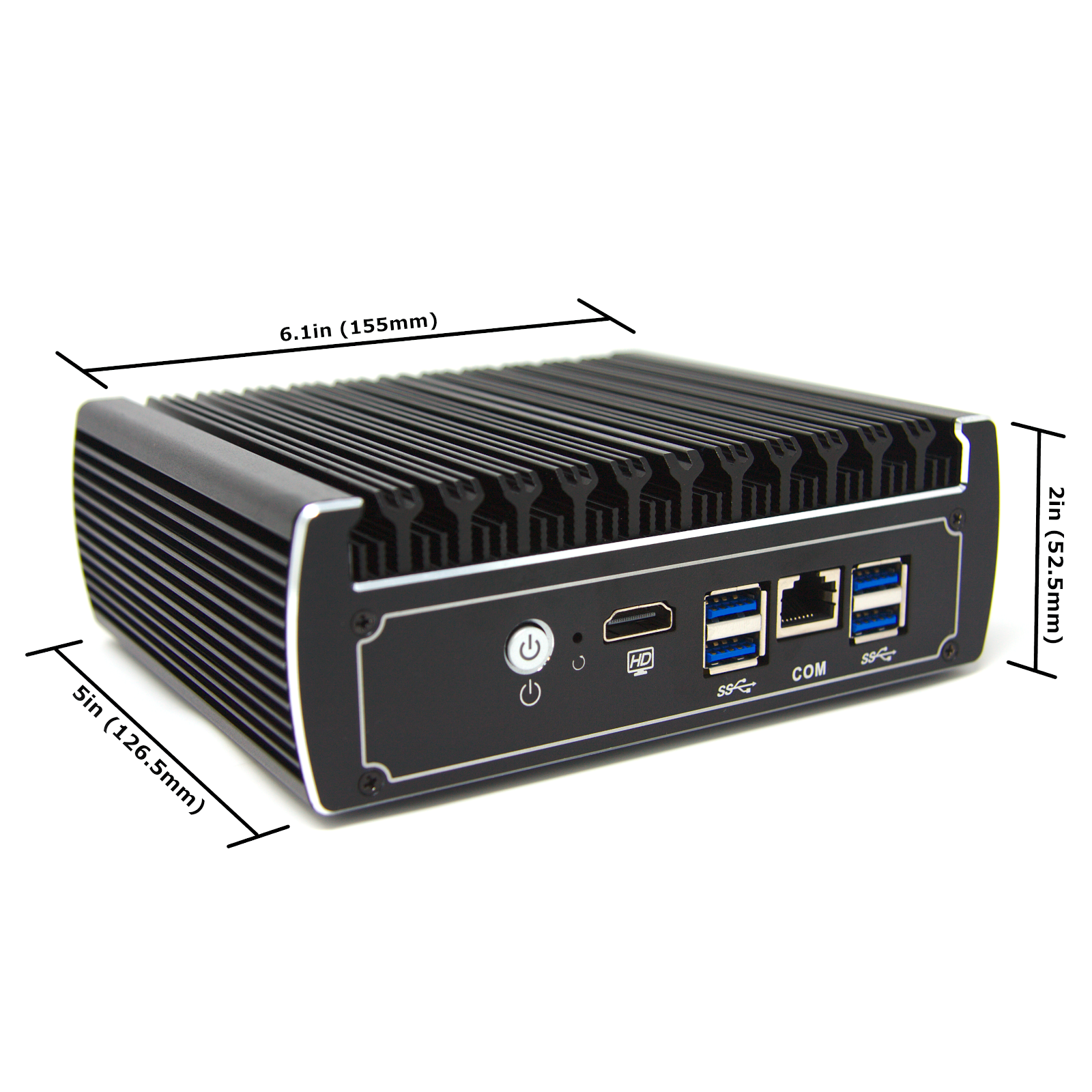

Dimensions 155.5mm × 127mm × 52.5mm
Cooling Radiators (fanless and silent)
Mount kit Included VESA mount kit
