Dasharo: Motherboard MSI PRO B850M-P WiFi DDR5
Price range: 290,00 € through 460,00 € (ex. VAT)
Overview

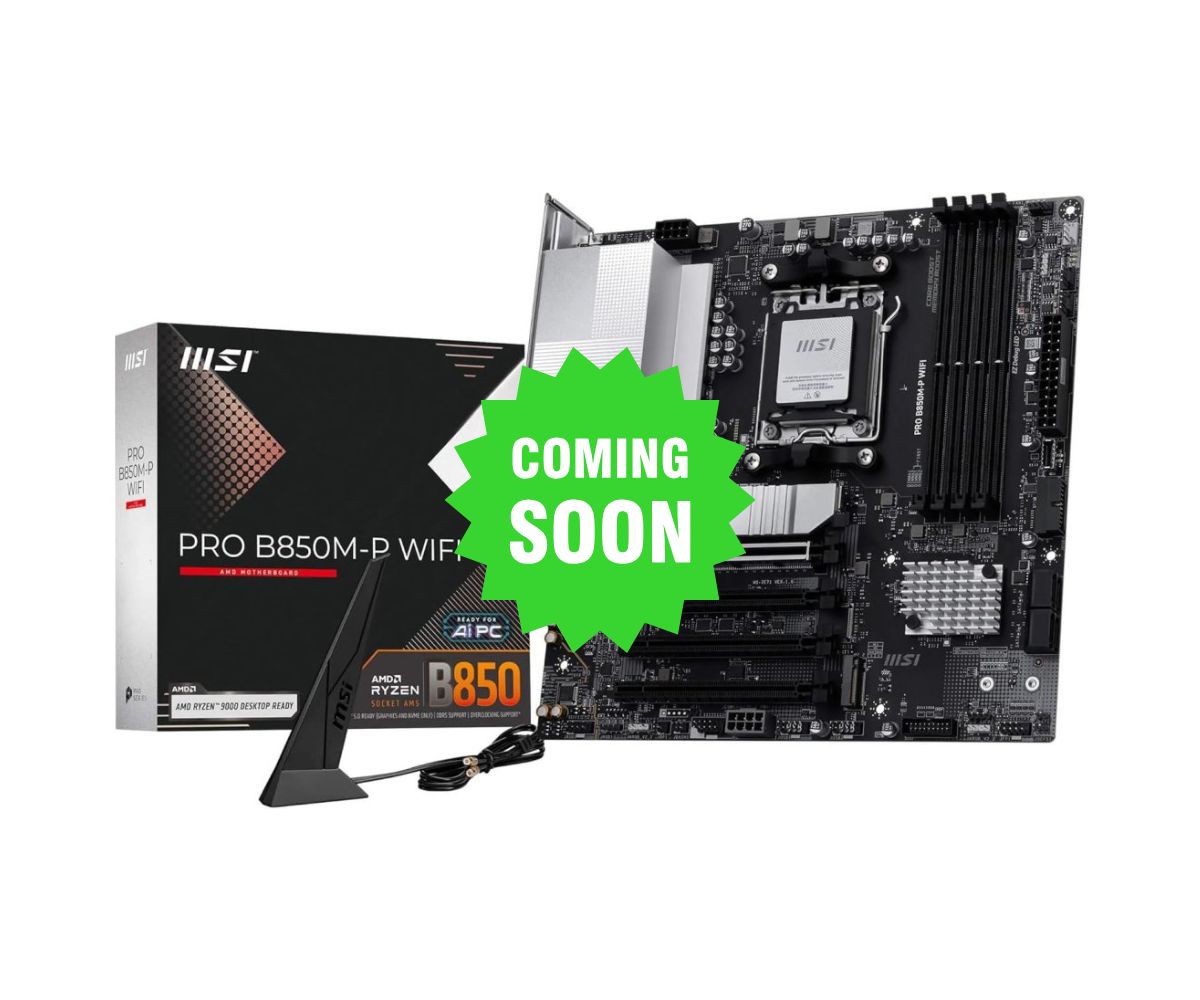

Bringing Dasharo open-source firmware distribution to the MSI PRO B850M-P WiFi DDR5 motherboard.
Please note that this product includes the motherboard platform only, without additional components. This is the DDR5 version of the platform with integrated Wi-Fi.
The Dasharo Motherboard MSI PRO B850M-P WIFI DDR5 is a modern AMD AM5 platform designed for users looking for a reliable desktop, workstation, homelab, or development system with open-source firmware.
The product is currently marked as Coming Soon and is listed for informational purposes only. It will become available for purchase after the initial Dasharo release for this platform, planned for the second half of this year.
Once released, the motherboard will be offered with Dasharo firmware and the Dasharo Pro Package, providing an open-source firmware foundation focused on transparency, auditability, and long-term maintainability, along with access to firmware updates, documentation, and dedicated support resources for this platform.
Documentation:
- Dasharo Documentation – coming soon
- Release notes – coming soon
- Board Manual
- Board Specifications
You support open-source firmware and Dasharo distribution by buying the hardware and package.
Tamper-proof sealing option:
To avoid any intentional interference during the transit, we have included the choice of securing the packaging with seals. We’ll provide you with pictures of the seals via email so that you can examine them for any signs of damage or alteration once you receive the package. Furthermore, we will secure your BIOS with a password for added security. You will receive the password directly to your email address.
By purchasing this product, you agree to have read and accepted Dasharo Terms of Service.
Additional information
| Weight | 3 kg |
|---|---|
| Order Processing Time | The preparation of your order will take up to 6 working days after the payment has been processed. |
Description
Dasharo Pro Package
By buying the product you will also receive Dasharo (coreboot+UEFI) Pro Package, which includes:
Dasharo Tools Suite Pro Package.
Specifications
| Model Name | MSI PRO B850M-P WiFi DDR5 |
|---|---|
| CPU Support | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, maximum memory capacity 256GB Memory support: DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s |
| Onboard Graphics | 1x HDMI™ Supports HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DisplayPort 1.4, maximum resolution of 4K 60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Expansion Slots | 4x PCI-E x16 slots PCI_E1 Gen PCIe 5.0 supports up to x16 from CPU PCI_E2 Gen PCIe 3.0 supports up to x1 from chipset PCI_E3 Gen PCIe 3.0 supports up to x1 from chipset PCI_E4 Gen PCIe 3.0 supports up to x1 from chipset PCI_E1 slot: • Supports PCIe 5.0 x16 for Ryzen™ 9000 / 7000 Series processors • Supports PCIe 4.0 x8 for Ryzen™ 8700 / 8600 / 8400 Series processors • Supports PCIe 4.0 x4 for Ryzen™ 8500 / 8300 Series processors |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 3x M.2 M.2_1 source from CPU supports up to PCIe 5.0 x4, supports 2280 / 2260 devices M.2_2 source from CPU supports up to PCIe 4.0 x4, supports 2280 / 2260 devices M.2_3 source from chipset supports up to PCIe 4.0 x2, supports 2280 devices 4x SATA 6G M2_1 slot: • Supports up to PCIe 5.0 x4 for Ryzen™ 9000 / 7000 Series processors • Supports up to PCIe 4.0 x4 for Ryzen™ 8000 Series processors M2_2 slot: • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 for Ryzen™ 8500 / 8300 Series processors * Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices * RAID 5 configuration is only supported by Ryzen™ 9000 Series processors. |
| USB ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type-A (Rear) 4x USB 5Gbps Type-A (Front) 1x USB 10Gbps Type-A (Rear) 1x USB 10Gbps Type-C (Rear) 1x USB 10Gbps Type-C (Front) |
| LAN | Realtek® 8126VB 5G LAN |
| Internal I/O | 1x Power Connector ATX_PWR 1x Power Connector CPU_PWR 1x Power Connector PCIE_PWR 8-pin 1x CPU Fan 1x Combo Fan Pump_Sys Fan 3x System Fan 2x Front Panel JFP 1x Chassis Intrusion JCI 1x Front Audio JAUD 1x Com Port JCOM 1x Tuning Controller connector JDASH 3x Addressable V2 RGB LED connector JARGB_V2 1x RGB LED connector JRGB 1x TPM pin header, supports TPM 2.0 4x USB 2.0 ports 4x USB 5Gbps Type-A ports 1x USB 10Gbps Type-C port |
| Wireless LAN & Bluetooth | Wi-Fi 7 The wireless module is pre-installed in the M.2 Key-E slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* 160MHz up to 2.9Gbps Supports 802.11 a/b/g/n/ac/ax/be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on each country’s regulations, and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated. Please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| LED Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
Disclaimer
Due to necessary changes to the board, MSI’s standard warranty does not apply to this product.
3mdeb guarantees the proper operation of the platform for two years under the following conditions:
- Hardware used only the Certified Dasharo firmware version. If other firmware is or was installed, the warranty is void.
- No signs of customer interference with the platform or firmware.
- A customer delivers a 3mdeb platform at their own expense for analysis and possible repair, together with a detailed description of a problem.
When all the above conditions are met, 3mdeb will try to restore the original configuration and re-flash Dasharo.
3mdeb will send the platform back to the client at 3mdeb's expense, provided that the client has not breached the provisions of conditions 1 and 2.
In the event of failure to meet the above conditions or culpable action of the customer, the warranty repair is not entitled, and the warranty for a given item is canceled.
