Dasharo: BenchRack ASRock TURIND8UD-2T/X550

Description

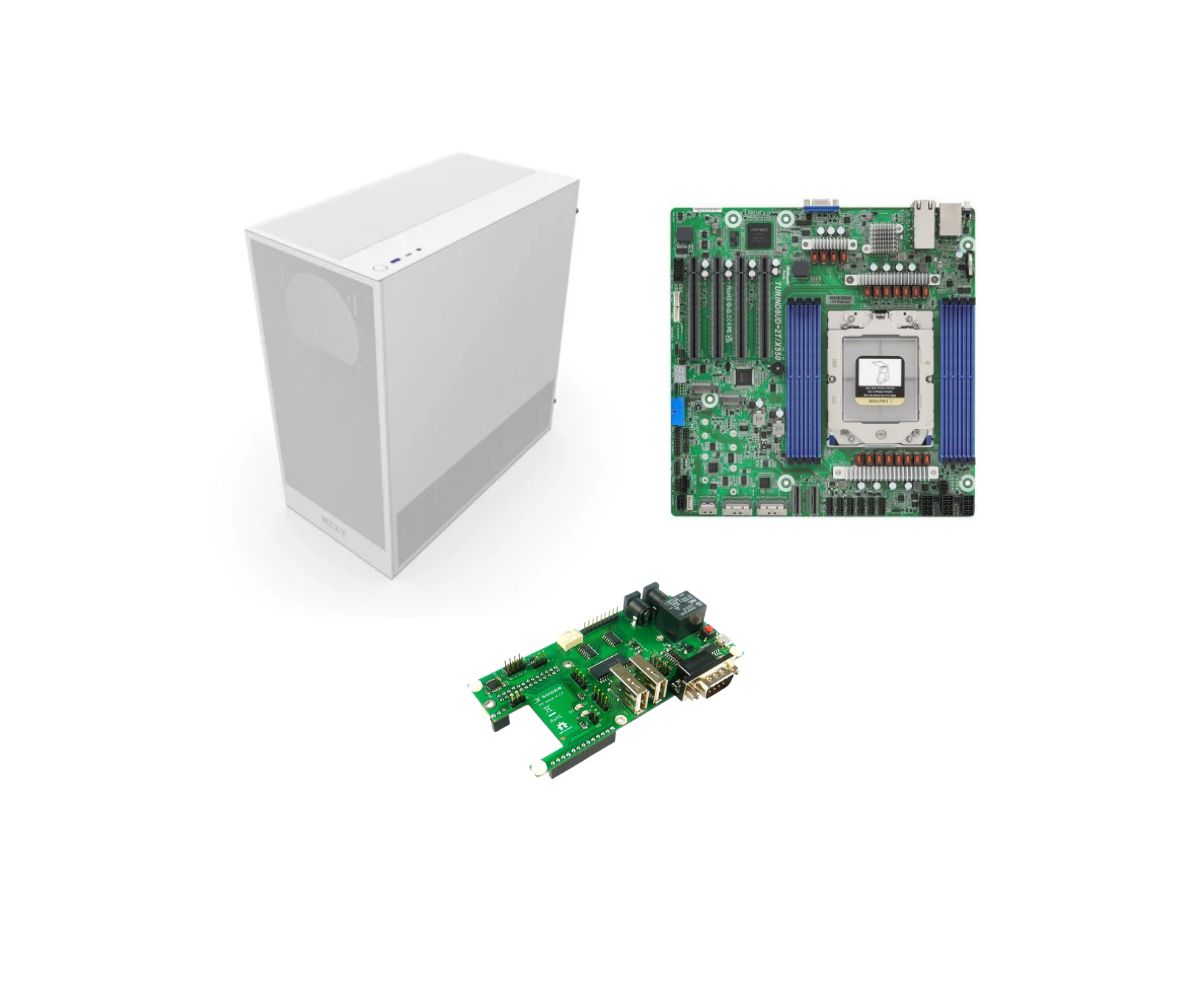

ASRock TURIND8UD-2T/X550 - BenchRack Edition

BenchRack is 3mdeb's development-oriented server line for remote firmware and BMC work.

It extends the Full Build Dev configuration with open-source hardware components used for remote firmware development,
validation, recovery, and debugging workflows. The baseline BenchRack concept includes a Dasharo-supported server platform

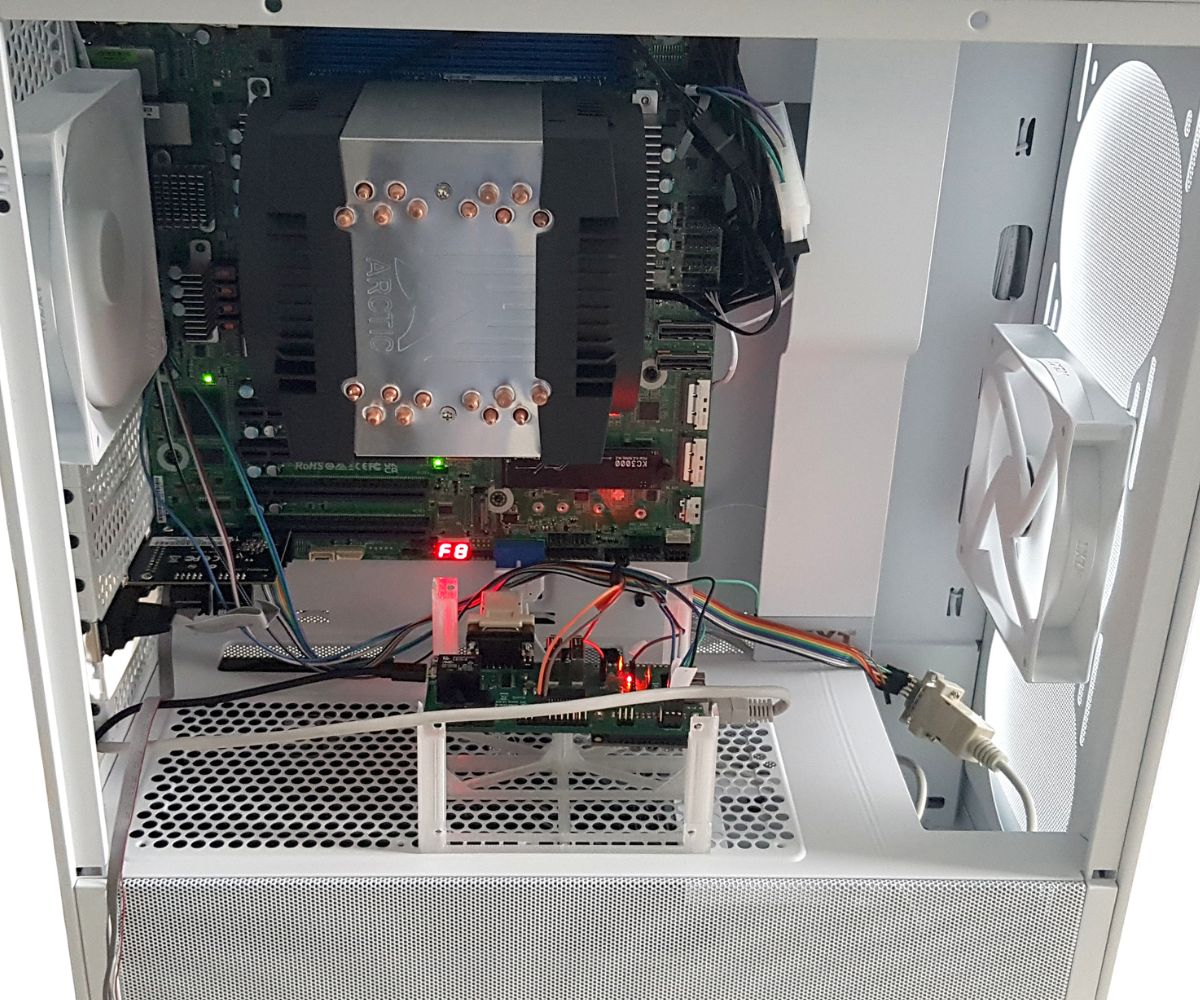

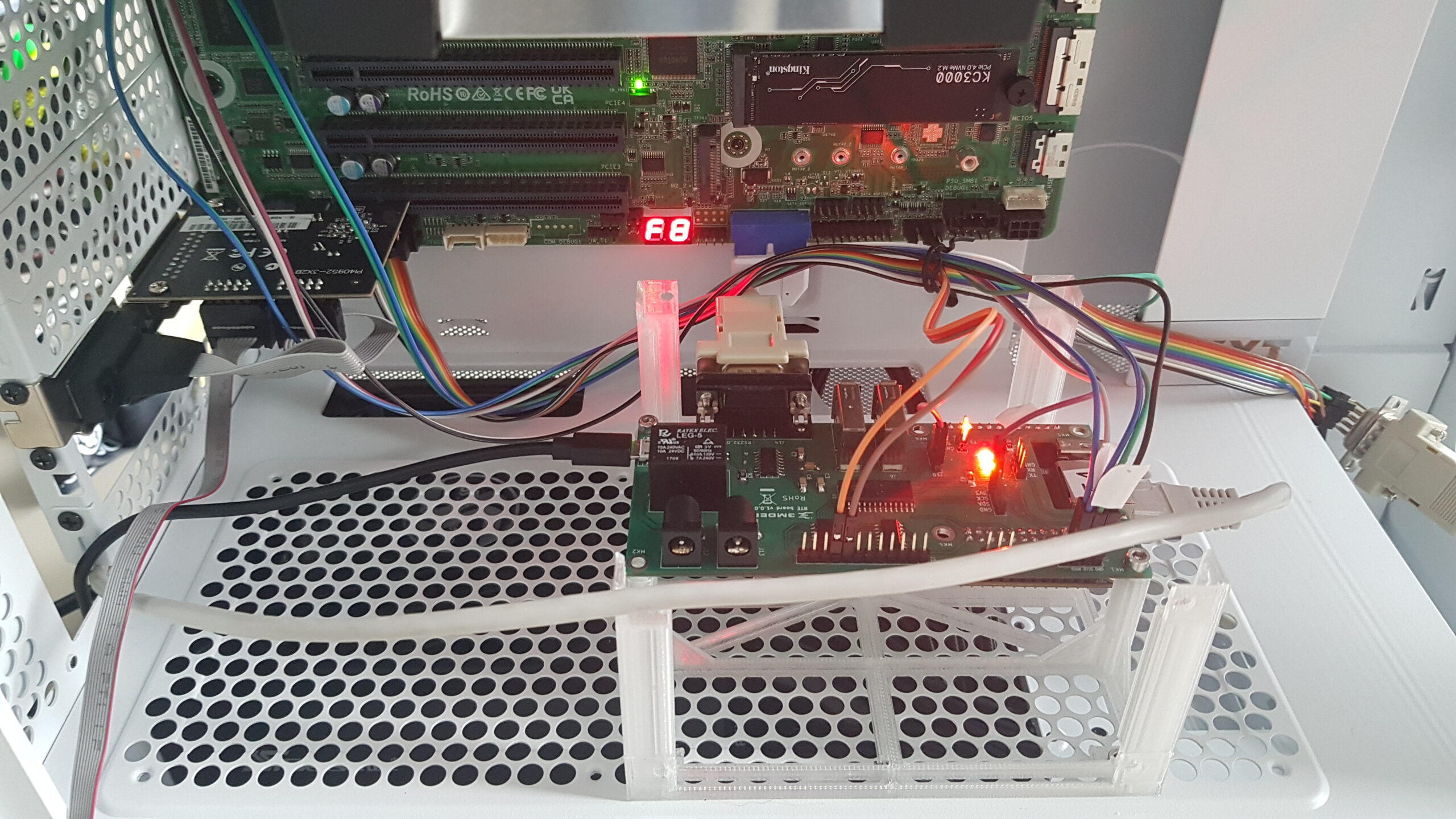

together with Remote Testing Environment hardware and mechanical mounting elements designed for lab and rack-like development setups.

BenchRack is intended for firmware development teams, validation labs, Dasharo contributors, and organizations that need
reproducible infrastructure for transparent server firmware work.

Compared to the standard Full Build Dev line, BenchRack focuses on:

Remote BIOS and BMC firmware development

Remote validation and recovery workflows

Integration with 3mdeb Remote Testing Environment hardware

Reproducible lab setup for Dasharo and BMC work

Open-source-hardware-based development infrastructure

Mechanical mounting suitable for bench or rack-like lab use

Product status: Planned / quote-to-order

This BenchRack configuration is currently under active design. The final bill of materials, number of RTE devices,
additional OSHW components, mounting solution, lead time, and pricing are confirmed individually. Please use the enquiry
option to discuss your target use case and final configuration.

Dasharo Pro Package for Servers

The Dasharo Pro Package for Servers grants access to the firmware updates for the Server line of devices supported by Dasharo.
Firmware configuration is selected above using the Dasharo Pro Package option selector.

Available firmware configurations:

coreboot + UEFI

coreboot + LinuxBoot

The personalized digital package includes:

Firmware Updates: Access to the latest binary releases of Dasharo open-source firmware distribution for supported Server platforms. Firmware updates focus on enhanced privacy, security, performance, and compatibility.

Newsletter Subscription: a detailed overview of release changes, insights into enhancements, and convenient access to direct links for binary files.

Premier Support: Access to the Dasharo Premier Support invite-only live chat channel in the Matrix network, facilitating direct engagement with the Dasharo Team and fellow customers with personalized and priority assistance.

Community Involvement: Inclusion in the Dasharo community for sharing thoughts, proposing enhancements, and reporting issues through public channels. Active community participation will significantly impact the future development of Dasharo specifically for these devices.

Insider’s view and influence on Dasharo features roadmap: you can have a real impact on Dasharo development.

Specifications

Model Name	TURIND8UD-2T/X550
Dimensions	10.4" x 10.5"
CPU	Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors Single Socket SP5 (LGA 6096) Up to 400W System on Chip
Memory	8 DIMM slots (1DPC) Supports DDR5 288-pin RDIMM, RDIMM-3DS 6400 MHz 1.1V
PCIe Expansion Slots	SLOT6: PCIe5.0 / CXL2.0* x16 SLOT5: PCIe5.0 / CXL2.0* x16 SLOT4: PCIe5.0 / CXL2.0* x16 SLOT3: PCIe5.0 / CXL2.0* x16
Internal I/O	1x Power Connector (4-pin, ATX PSU signal) 1x Other Power Connectors - (6-pin) for HDD power 1x Auxiliary Panel Header (18-pin) 1x System Panel (9-pin) 1x COM Header 1x Speaker Header 6x Fan Header 1x Thermal Sensor Header 1x TPM Header (13-pin, SPI) 2x SGPIO Header 1x HSBP 1x SMBus header 1x PMBus header 1x IPMB Header 1x Clear CMOS 1x USB 3.2 (Gen1) Header 1x NMI Header
Rear I/O	2 x USB 3.2 Gen1 ports (Type-A) 1x UID Button/LED 1x Video Port - 1 DB15 (VGA) 2x USB 3.2 Gen1 Port - 2 Type-A (USB3.2 Gen1) 2x RJ45
SATA/SAS Storage	PCH Built-in Storage - AMD EPYC™ 9005/9004 (16 SATA 6Gb/s): 2 MCIO
Server Management	BMC Controller - ASPEED AST2600 Dedicated IPMI LAN - 1 Realtek RTL8211F for dedicated management GLAN
Environment	Temperature - Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C Humidity - Non-operating humidity: 20% ~ 90% (non-condensing)

Disclaimer

Due to necessary modifications to the board, the standard warranty does not apply to this product.
3mdeb guarantees proper operation of the platform for two years under the following conditions:

1. The hardware used only the Certified Dasharo firmware version. If other firmware is or has been installed, the warranty is void.
2. There are no signs of customer interference with the platform or firmware.
3. The customer delivers a 3mdeb platform at their own expense for analysis and possible repair, together with a detailed description of the problem.

When all the above conditions are met, 3mdeb will try to restore the original configuration and re-flash Dasharo. The platform will then be returned to the customer at 3mdeb’s expense, provided that conditions 1 and 2 have not been breached.
If the above conditions are not met, or in the event of culpable action by the customer, warranty repair is not provided, and the warranty for the item is void.
