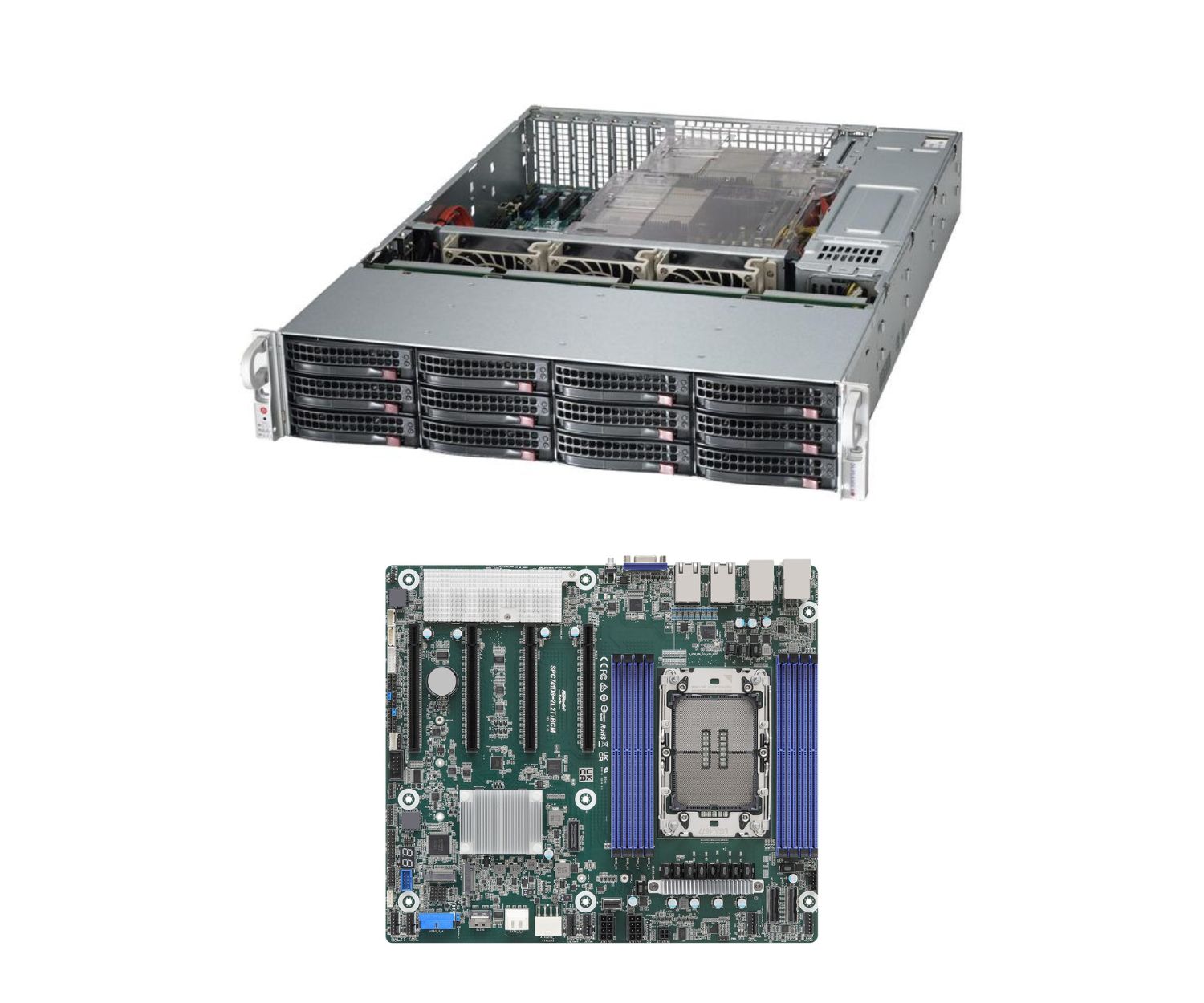

Dasharo: Enterprise ASRock SPC741D8-2L2T/BCM
Price range: 12567,00 € through 12617,00 € (ex. VAT)
Overview
The Enterprise ASRock Rack SPC741D8-2L2T/BCM with Dasharo Pro Package for Servers is a high-end, enterprise-grade server platform designed for demanding data center, virtualization, and storage-intensive workloads. Built around the Intel C741 chipset and powered by Intel Xeon Scalable processors, this configuration delivers exceptional performance, reliability, and expandability.
This enterprise configuration is specifically engineered for high-density storage environments, supporting up to 8x NVMe drives and 4x SATA devices, with direct CPU-connected NVMe for maximum throughput and minimal latency. Combined with ECC DDR5 memory, redundant-grade components, and a robust 2U chassis, the platform is optimized for mission-critical deployments.
The system is enhanced with the Dasharo Pro Package, providing open-source firmware with a focus on security, transparency, and long-term maintainability, along with access to updates and professional support.
Specifications
| Category | Product name |
|---|---|
| Motherboard | ASRock Rack SPC741D8-2L2T/BCM |
| CPU | Intel Xeon Silver 4410Y |
| RAM | 32GB Samsung DDR5 ECC RDIMM (M321R4GA3BB6-CQK) |
| Storage (NVMe) | Intel P4510 U.2 2TB NVMe PCIe 3.0 (Refurbished) |
| NVMe mounting adapter | Supermicro MCP-220-00116-0B |
| Storage (SATA) | Intel SSD DC S3710 800GB (Refurbished) |
| 2.5″ mounting adapter | Supermicro MCP-220-00118-0B |
| CPU Cooling | Supermicro SNK-P0088P (passive) |
| TPM | ASRock TPM-SPI |

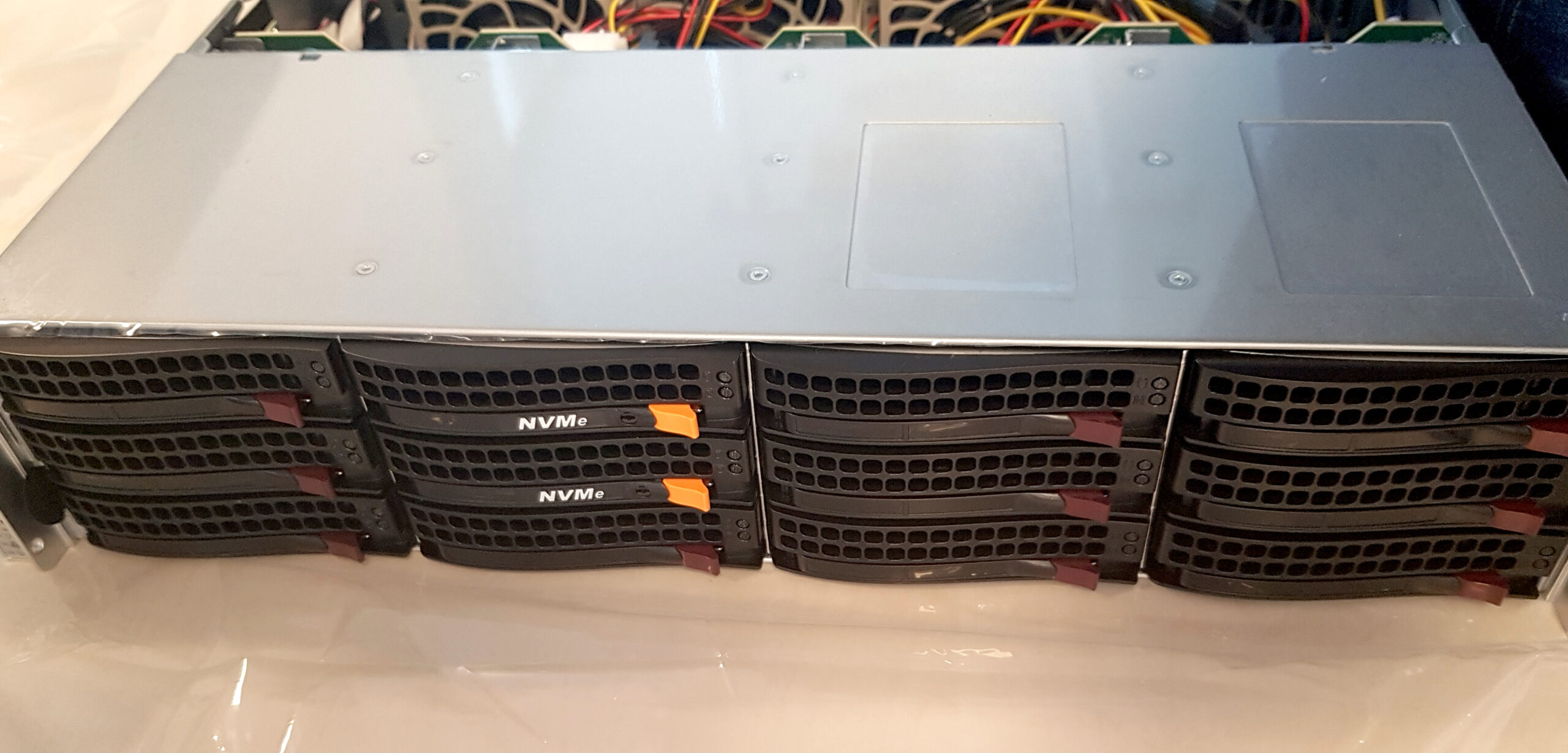

| Chassis (2U) | Supermicro CSE-826BAC12-R1K23LPB |
| Power Distribution Board (PDB) | Supermicro PDB-PT826-S4824 |
| SATA cable (0.5m) | CAB-MCIOi4-8654i4 |
| NVMe cable (0.5m) | CAB-MCIOi8-8654i8 |
| NVMe cable (0.8m) | CAB-MCIOi8-8654i8 |
| PCIe NVMe adapter | Kalea-Informatique 11867926 |
| EPS Power Adapter | Akasa AK-CA-08 EPS |
| Dasharo Pro Package | Included |
| Additional | Tamper-proof sealing |
This configuration is based exclusively on components that have been internally validated and tested with Dasharo. Using the recommended setup ensures full firmware compatibility, stable operation, and access to official Dasharo support. Functionality outside the validated configuration cannot be guaranteed.
Key Features
- Enterprise-grade platform based on Intel C741 chipset
- Support for Intel Xeon Scalable processors
- High-density storage: 8x NVMe + 4x SATA
- Direct CPU-connected NVMe for maximum performance
- ECC DDR5 memory for reliability and data integrity
- 2U rackmount chassis with server-grade cooling and power delivery
- Open-source firmware with Dasharo (coreboot + UEFI)
- Designed for virtualization, storage nodes, and high-performance infrastructure
Documentation
- ASRock SPC741D8-2L2T/BCM at Dasharo Universe
- Dasharo Release Notes
- User Manual
- Server Specifications
You support open-source firmware and Dasharo distribution by buying the hardware and package.
Tamper-proof sealing option:
To avoid any intentional interference during transit, the package can be secured with seals. Photos of the seals will be provided via email for verification upon delivery. Additionally, the BIOS will be secured with a password, which will also be sent via email.
By purchasing this product, you confirm that you have read and accepted the Dasharo Terms of Service.
Additional information
| Weight | 10 kg |
|---|---|
| Order Processing Time | Due to limited availability, we cannot guarantee immediate stock of this motherboard. In some cases, additional lead time of up to 3 weeks may be required. |
Description
Value Proposition
This configuration is tailored for customers requiring maximum storage throughput, reliability, and firmware transparency. It is particularly suited for:
The inclusion of Dasharo ensures long-term control over firmware behavior, eliminating vendor lock-in and enhancing platform security.
Dasharo Pro Package for Servers
The Dasharo Pro Package for Servers grants access to the firmware updates for the Server line of devices supported by Dasharo.
Firmware configuration is selected above using the Dasharo Pro Package option selector.
Available firmware configurations:
Important notes about the LinuxBoot firmware option:
The personalized digital package includes:
Firmware updates focus on enhanced privacy, security, performance, and compatibility.
Specifications
| Model Name | SPC741D8-2L2T/BCM |
|---|---|
| Physical Status | Form Factor | CEB |
| Dimensions | 12'' x 10.5'' (304.8 x 266.7 mm) |
| Processor System | |
| CPU | Supports 5th and 4th Gen Intel® Xeon® Scalable Processors CPU support depends on BIOS version |
| Socket | Single Socket E (LGA 4677) |
| Thermal Design Power | 350W |
| Chipset | Intel® C741 |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | 288-pin DDR5 RDIMM/ RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 96GB RDIMM-3DS: 2H- 128 GB / 4H- 256 GB |
| Max. DIMM Frequency | 5600 MT/s on 5th Gen Intel® Xeon® Scalable Processors 4800 MT/s on 4th Gen Intel® Xeon® Scalable Processors |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT7: PCIe5.0 / CXL1.1 x16 [CPU] SLOT5: PCIe5.0 / CXL1.1 x16 [CPU] SLOT3: PCIe5.0 / CXL1.1 x16 [CPU] SLOT1: PCIe5.0 / CXL1.1 x16 [CPU] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [PCH] 1 M-key M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [PCH] |
| Others | 2 MCIO (PCIe5.0 x8) [CPU] 1 MCIO (PCIe3.0 x4 or SATA 6Gb/s) [PCH] |
| SATA/SAS Storage | |
| PCH Built-in Storage | Intel® C741 (Up to 12 SATA 6Gb/s, support RAID 0/1/5/10): 1 MCIO 4i for 4 SATA, 8 SATA via optional M2U2-HD-4G M.2 device |
| Ethernet | |
| Additional GbE Controller | 2 RJ45 (10GbE) by Broadcom BCM57416 2 RJ45 (1GbE) by Intel® i210 |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| Video Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 Micro-Fit (4-pin, ATX PSU signal), 3 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 (9-pin) |
| Speaker Header | 1 (4-pin) |
| Fan Header | 6 (6-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| VROC header | 1 |
| SGPIO Header | 2 |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Front Lan LED Connector | 1 |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| USB 2.0 Header | 1 (9-pin, 2 USB2.0) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| BIOS Features | Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash (Not supported / not tested) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, TR1 Temperature sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | CPU1_PVCCIN, 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, +12V, +12VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% (Non condensing) |
Disclaimer
Due to necessary modifications to the board, the standard warranty does not apply to this product.
3mdeb guarantees proper operation of the platform for two years under the following conditions:
- The hardware used only the Certified Dasharo firmware version. If other firmware is or has been installed, the warranty is void.
- There are no signs of customer interference with the platform or firmware.
- The customer delivers a 3mdeb platform at their own expense for analysis and possible repair, together with a detailed description of the problem.
When all the above conditions are met, 3mdeb will try to restore the original configuration and re-flash Dasharo. The platform will then be returned to the customer at 3mdeb’s expense, provided that conditions 1 and 2 have not been breached.
If the above conditions are not met, or in the event of culpable action by the customer, warranty repair is not provided, and the warranty for the item is void.
