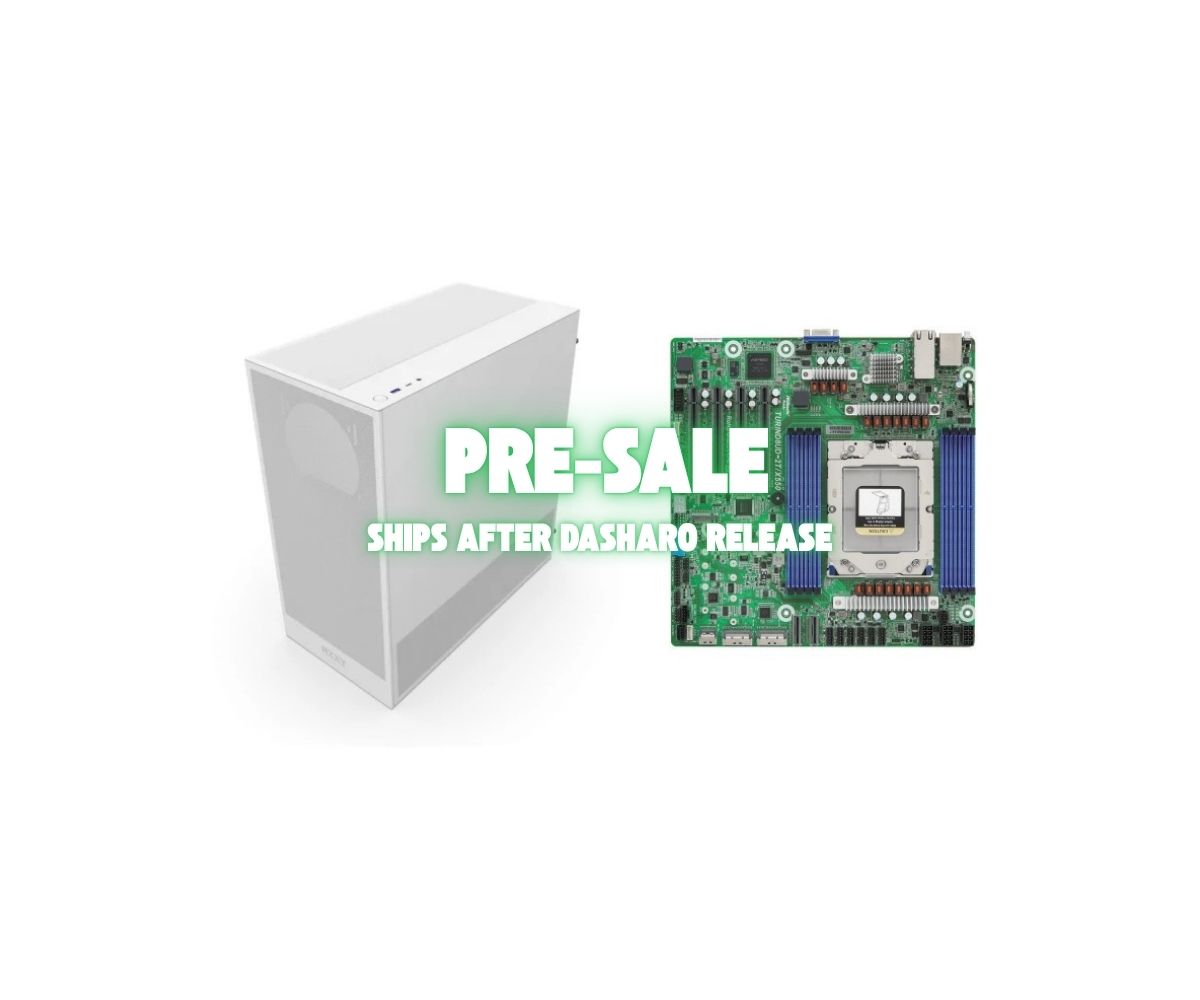

Full Build ASRock TURIND8UD-2T/X550 with Dasharo (coreboot+UEFI) Pro Package for Servers
Price range: 4800,00 € through 4850,00 € (ex. VAT)
Overview
Bringing Dasharo open-source firmware distribution to the ASRock TURIND8UD-2T/X550!
The ASRock TURIND8UD-2T/X550 is a high-performance E-ATX server motherboard built for enterprise, virtualization, and cloud workloads. It supports a single-socket platform for AMD EPYC 9004 Series (Genoa) and AMD EPYC 9005 Series (Turin) processors, delivering strong scalability and efficiency. The board features dual 10GbE networking, PCIe Gen5 expansion, flexible NVMe/SATA storage support, and is equipped with an ASPEED AST2600 for advanced remote management and monitoring.
The Full configuration includes carefully selected components:
| Part | Model Name |
|---|---|
| CPU | AMD EPYC model 9115 |
| Cooling | ARCTIC Freezer 4U-SP5 4U Single Tower CPU Cooler AMD SP5 |
| RAM | RAM 1x 16GB Kingston ECC REGISTERED DDR5 1Rx8 5600MHz PC5-44800 RDIMM |
| Power Supply | Seasonic VERTEX GX-750 80Plus Gold |
| Storage | SSD Kingston KC3000 512GB M.2 2280 PCI-E x4 Gen4 NVMe |
| Case | NZXT H5 Flow (2024) Tempered Glass White |
| TPM | ASRock TPM module TPM-SPI/INFINEON |
Documentation:
- Dasharo Release Notes – Coming Soon
- User Manual
You support open-source firmware and Dasharo distribution by buying the hardware and package.
Tamper-proof sealing option:
To avoid any intentional interference during the transit, we have included the choice of securing the packaging with seals. We’ll provide you with pictures of the seals via email so that you can examine them for any signs of damage or alteration once you receive the package. Furthermore, we will secure your BIOS with a password for added security. You will receive the password directly to your email address.
By purchasing this product, you agree to have read and accepted Dasharo Terms of Service.
Pre-sale information
This product is currently available for pre-sale. Orders can already be placed, however shipment will begin after the official release of the supported Dasharo firmware version.
Additional information
| Weight | 3 kg |
|---|---|
| Order Processing Time | Due to limited availability, we cannot guarantee immediate stock of this motherboard. In some cases, additional lead time of up to 3 weeks may be required. |
Description
Dasharo (coreboot+UEFI) Pro Package
The Dasharo Pro Package for Servers grants access to the firmware updates for the Server line of devices supported by Dasharo.
The personalized digital package includes:
Specifications
| Model Name | TURIND8UD-2T/X550 |
|---|---|
| Dimensions | 10.4" x 10.5" |
| CPU | Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors Single Socket SP5 (LGA 6096) Up to 400W System on Chip |
| Memory | 8 DIMM slots (1DPC) Supports DDR5 288-pin RDIMM, RDIMM-3DS 6400 MHz 1.1V |
| PCIe Expansion Slots | SLOT6: PCIe5.0 / CXL2.0* x16 SLOT5: PCIe5.0 / CXL2.0* x16 SLOT4: PCIe5.0 / CXL2.0* x16 SLOT3: PCIe5.0 / CXL2.0* x16 |
| Internal I/O |
1x Power Connector (4-pin, ATX PSU signal) 1x Other Power Connectors - (6-pin) for HDD power 1x Auxiliary Panel Header (18-pin) 1x System Panel (9-pin) 1x COM Header 1x Speaker Header 6x Fan Header 1x Thermal Sensor Header 1x TPM Header (13-pin, SPI) 2x SGPIO Header 1x HSBP 1x SMBus header 1x PMBus header 1x IPMB Header 1x Clear CMOS 1x USB 3.2 (Gen1) Header 1x NMI Header |
| Rear I/O |
2 x USB 3.2 Gen1 ports (Type-A) 1x UID Button/LED 1x Video Port - 1 DB15 (VGA) 2x USB 3.2 Gen1 Port - 2 Type-A (USB3.2 Gen1) 2x RJ45 |
| SATA/SAS Storage | PCH Built-in Storage - AMD EPYC™ 9005/9004 (16 SATA 6Gb/s): 2 MCIO |
| Server Management |
BMC Controller - ASPEED AST2600 Dedicated IPMI LAN - 1 Realtek RTL8211F for dedicated management GLAN |
| Environment |
Temperature - Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C Humidity - Non-operating humidity: 20% ~ 90% (non-condensing) |
Disclaimer
Due to necessary modifications to the board, the standard warranty does not apply to this product.
3mdeb guarantees proper operation of the platform for two years under the following conditions:
- The hardware used only the Certified Dasharo firmware version. If other firmware is or has been installed, the warranty is void.
- There are no signs of customer interference with the platform or firmware.
- The customer delivers a 3mdeb platform at their own expense for analysis and possible repair, together with a detailed description of the problem.
When all the above conditions are met, 3mdeb will try to restore the original configuration and re-flash Dasharo. The platform will then be returned to the customer at 3mdeb’s expense, provided that conditions 1 and 2 have not been breached.
If the above conditions are not met, or in the event of culpable action by the customer, warranty repair is not provided, and the warranty for the item is void.
