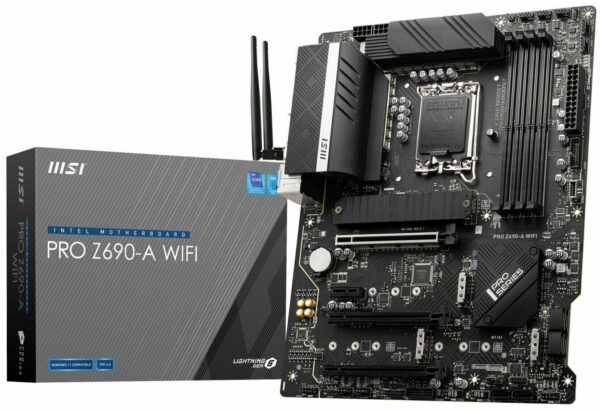

MSI PRO Z690-A WiFi DDR5 with Dasharo Entry Subscription – Full PC Build
845,00 € – 1015,00 € (ex. VAT)
Bringing Dasharo open-source firmware distribution to the MSI PRO Z690-A WiFi DDR5 motherboard.
This platform is DDR5 version with WiFi.
The Full configuration includes carefully selected components:
|CPU||Intel Core i5-12600K, 3.7GHz|
|Cooling||Noctua CPU NH-U12S Redux|
|RAM||Kingston Fury Beast, DDR5, 2×16 GB (32 GB Total), 6000 MHz, CL36
currently we are working at 2400 MHz, achieving higher CPU frequency requires implementation of XMP
|Power Supply||Seasonic Focus PX 750W 80 Plus Platinum|
|Storage||SSD Intel 670p 512 GB M.2 2280 PCI-E x4 Gen3 NVMe|
|Case||SilentiumPC Armis AR1|
If you prefer other configuration please refer to the table in the Description below. Simply choose your setup and ask us for pricing. You can click the ‘Enquiry for this product’ button below or contact us at firstname.lastname@example.org.
You support open-source firmware and Dasharo distribution by buying the hardware and subscription.
Tamper-proof sealing option:
In order to avoid any intentional interference during the transit, we have included the choice of securing the screws with seals. We’ll provide you with pictures of the seals via email, so that you can examine them for any signs of damage or alteration once you receive the package.
The firmware recovery kit can be ordered separately here: CH341A Programmer Kit with WSON8 probe
By purchasing this product, you agree to have read and accepted Dasharo Terms of Service.
|Order Processing Time||
The preparation of your order will take up to 8 working days after the payment has been processed.
Dasharo Entry Subscription
By buying the product you will also receive Dasharo Entry Subscription, which includes:
Dasharo Desktop Roadmap.
Dasharo Tools Suite Entry Subscription.
To receive news and updates on the development of this project Subscribe to our Newsletter.
Please note that this is the community newsletter, distinct from the DES exclusive one. In essence, the exclusive newsletter is designed for current customers who have made a purchase, providing them with exclusive content and benefits, while the community newsletter targets a broader audience to build awareness, engagement, and interest around the product. To learn more about the community releases, please visit Dasharo Universe.
Please note that the prices provided are merely estimates. As market prices are subject to change, we recommend reaching out to us for accurate calculations tailored to your specific needs.
|Model Name||PRO Z690-A DDR5|
|CPU Support||Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors|
|CPU Socket||LGA 1700|
|Graphics Interface||1x PCIe 5.0 x16 slot
1x PCIe 3.0 x16 slot
Supports AMD® CrossFire™ Technology
|Display Interface||Support 4K@60Hz as specified in HDMI 2.1,
DisplayPort 1.4 – Requires Processor Graphics
|Memory Support||4 DIMMs, Dual Channel DDR5-5200+MHz(OC)|
|Expansion Slots||1x PCIe 3.0 x16 slot
1x PCIe 3.0 x1 slot
|Storage||3x M.2 Gen4 x4 64Gbps slots
1x M.2 Gen3 x4 32Gbps slot
6x SATA 6Gbps ports
|Ports & Connectors||1x DisplayPort 1.4
1x BIOS FlashBack Button
1x PS/2 mouse/keyboard combo port
1x USB 3.2 Gen 2x2 20Gbps (1 Type-C)
2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C)
6x USB 3.2 Gen 1 5Gbps (6 Type-A)
8x USB 2.0
6x Audio Jacks
|LAN||Intel® I225-V 2.5G LAN|
|Audio||8-Channel (7.1) HD Audio with Audio Boost|
Due to necessary changes to the board, MSI’s standard warranty does not apply to this product.
3mdeb guarantees the proper operation of the platform for two years under the following conditions:
- Hardware used only the Certified Dasharo firmware version. If other firmware is or was installed, the warranty is void.
- No signs of customer interference with the platform or firmware.
- A customer delivers a 3mdeb platform at their own expense for analysis and possible repair, together with a detailed description of a problem.
When all the above conditions are met, 3mdeb will try to restore the original configuration and re-flash Dasharo.
3mdeb will send the platform back to the client at 3mdeb's expense, provided that the client has not breached the provisions of conditions 1 and 2.
In the event of failure to meet the above conditions or culpable action of the customer, the warranty repair is not entitled, and the warranty for a given item is canceled.
