Gigabyte MZ33-AR1 with Dasharo (coreboot+UEFI) Pro Package for Servers

Overview

Bringing Dasharo open-source firmware distribution to the Gigabyte MZ33-AR1!

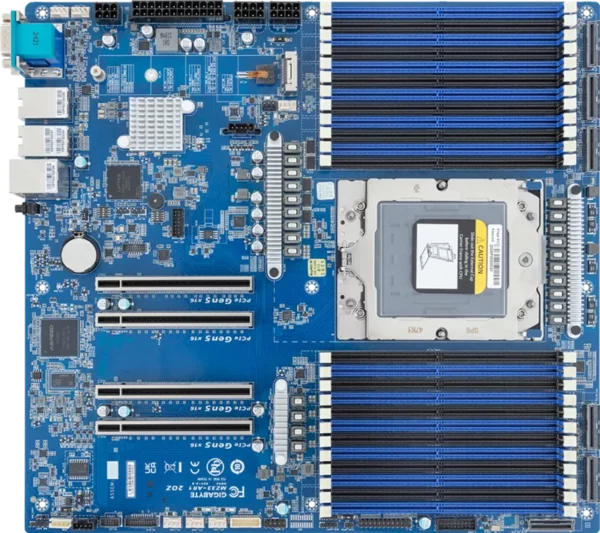

The Gigabyte MZ33-AR1 is a high-performance E-ATX server motherboard designed for enterprise and cloud workloads. It is a full-fledged single socket server board supporting AMD Genoa and AMD Turin EPYC server processors.

Key features include dual 10 GbE LAN ports, versatile PCIe Gen5 expansion, multiple NVMe/SATA storage options, and an ASPEED AST2600 BMC with Gigabyte Management Console for comprehensive remote monitoring and control.

For full specification, please see the “Description” section below.

Documentation:

You support open-source firmware and Dasharo distribution by buying the hardware and package.

Important note:
This product is for personal use only and allows the use of up to five devices with one package. Using more than five devices indicates a business use case. For business use, please contact us through the contact form or use the “Enquiry for this product” button, providing volume and the duration for which you wish to support a particular platform.

By purchasing this product, you agree to have read and accepted Dasharo Terms of Service.

This product is currently out of stock and unavailable.

SKU: N/A Category: Tags: ,

Additional information

Weight 3 kg
Order Processing Time

Due to limited availability, we cannot guarantee immediate stock of this motherboard. In some cases, additional lead time of up to 2 months may be required.

Description

Dasharo (coreboot+UEFI) Pro Package

The Dasharo Pro Package for Servers grants access to the firmware updates for the Server line of devices supported by Dasharo.

The personalized digital package includes:

  • Firmware Updates: Access to the latest binary releases of Dasharo open-source firmware distribution for supported Server platforms. Firmware updates focus on enhanced privacy, security, performance, and compatibility.
  • Newsletter Subscription: a detailed overview of release changes, insights into enhancements, and convenient access to direct links for binary files.
  • Premier Support: Access to the Dasharo Premier Support invite-only live chat channel in the Matrix network, facilitating direct engagement with the Dasharo Team and fellow customers with personalized and priority assistance.
  • Community Involvement: Inclusion in the Dasharo community for sharing thoughts, proposing enhancements, and reporting issues through public channels. Active community participation will significantly impact the future development of Dasharo specifically for these devices.
  • Insider’s view and influence on Dasharo features roadmap: you can have a real impact on Dasharo development.
  • Dasharo Pro Package for Servers aims to follow the Dasharo Server Roadmap.

    Specifications

    Model Name MZ33-AR1
    Form Factor (WxD, mm) E-ATX
    304.8 x 330.2
    CPU AMD EPYC™ 9005 Series Processors
    AMD EPYC™ 9004 Series Processors
    Single processor, cTDP up to 500W
    Socket 1 x LGA 6096
    Socket SP5
    Chipset System on Chip
    Memory 24 x DIMM slots
    DDR5 memory supported
    12-Channel memory per processor

    AMD EPYC™ 9005:
    RDIMM: Up to 5200 MT/s (1DPC)
    RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)

    AMD EPYC™ 9004:
    RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
    LAN 2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
    - Support NCSI function
    1 x 10/100/1000 Mbps Management LAN
    Video Integrated in ASPEED® AST2600
    - 1 x VGA port
    Audio N/A
    Storage Interface MCIO:
    2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA
    3 x MCIO 8i for 6 x Gen5 NVMe
    1 x MCIO 8i for 2 x Gen4 NVMe

    M.2:
    1 x M.2 (2280/22110), PCIe Gen4 x4
    RAID N/A
    PCIe Expansion Slots Slot_7: PCIe x16 (Gen5 x16)
    Slot_6: PCIe x16 (Gen5 x16)
    Slot_4: PCIe x16 (Gen5 x16)
    Slot_3: PCIe x16 (Gen5 x16)

    2 x MCIO 8i (PCIe Gen5 x8 or SATA)
    3 x MCIO 8i (PCIe Gen5 x8)
    1 x MCIO 8i (PCIe Gen4 x8)
    Internal I/O 1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x 6-pin ATX 12V power connector
    1 x CPU fan header
    5 x System fan headers
    1 x USB 3.2 Gen1 x2 header
    1 x USB 2.0 header
    1 x M.2 slot
    6 x MCIO 8i connectors
    1 x Front panel header
    1 x Backplane board header
    1 x PMBus connector
    1 x IPMB connector
    1 x TPM header
    Rear I/O 2 x USB 3.2 Gen1 ports (Type-A)
    1 x VGA port
    1 x COM port
    2 x RJ45 ports
    1 x MLAN port
    1 x ID button with LED
    Security Modules 1 x TPM header with SPI interface
    Operating Properties Operating temperature: 10°C to 40°C
    Operating humidity: 8% to 80% (non-condensing)
    Non-operating temperature: -40°C to 60°C
    Non-operating humidity: 20% to 95% (non-condensing)

    Disclaimer

    Due to necessary modifications to the board, the standard warranty does not apply to this product.
    3mdeb guarantees proper operation of the platform for two years under the following conditions:

    1. The hardware used only the Certified Dasharo firmware version. If other firmware is or has been installed, the warranty is void.
    2. There are no signs of customer interference with the platform or firmware.
    3. The customer delivers a 3mdeb platform at their own expense for analysis and possible repair, together with a detailed description of the problem.

    When all the above conditions are met, 3mdeb will try to restore the original configuration and re-flash Dasharo. The platform will then be returned to the customer at 3mdeb’s expense, provided that conditions 1 and 2 have not been breached.
    If the above conditions are not met, or in the event of culpable action by the customer, warranty repair is not provided, and the warranty for the item is void.
